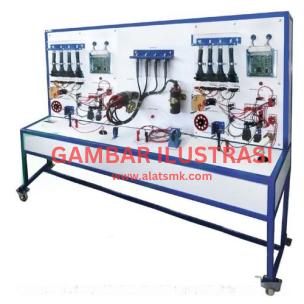

Automotive Ignition Circuit Control System Trainer with Various Sensor

Untuk mempelajari sistem kerja pengapian elektronik dan pengaruhnya terhadap sensor-sensor pada kendaraan,dan membandingkannya secara bersamaan dengan pengapian jenis konvensional, maupun pengapian elektronik lainnya yang menggunakan 2 coil (DLI) maupun
4 coil (DIS).

1) Carburetor Point ignition circuit system
- Spark plug, Power distributor of point system, Variable motor
for the distibutor, Diagnosis jack, Key box, Function-selection switch
- Ignition device pin point, Injector device, Carburetor
2) Suction type MPI, Kalman swirl system
- Power distributor type, Kalman swirl system, Optical type
- DLI Type, Kalman swirl system, Optical type
- 2 in 1 set. Ignition system as 2 arrays
- ECU, AFS, TPS, BPS, MPS, WTS, O2, ISC, ATS, Injector, Sparkplug, Power transistor, Power distributor, Variable motor for the distributor, AFS suction motor, Diagnosis jack, Control relay
3) Intake system MPI AFS
- DLI -2coil, magnetic type- DLI -2coil, magnetic Type - DIS -4coil, magnetic Type
- 2 in 1 set. Ignition system as 2 arrays- ECU, AFS, TPS, WTS, ISC, ATS, Injector, Spark plug, AFS intake motor, Diagnosis jack, Control relay
4) Intake system map sensor
- DLI -2coil, hall sensor type
- DIS -4coil, hall sensor type
- 2 in 1 set. ignition system as 2 arrays
- ECU, AFS, TPS, WTS, /SC, AFS, Injector, Spark plug, AFS
suction motor, Diagnosis jack, Control relay, Key box
5) 4 Cabinet type storage space with 2 door
Minimum 4 Training Contents
Manual Book
Modul Electronic lgnition System
