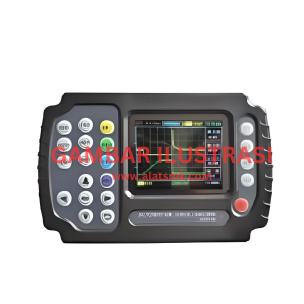

Automotive Oscilloscope

Untuk mengetahui data dari suplai tenaga injector, dan tersaji dalam bentuk angka maupun grafik.

Input coupling AC, DC, Channel 2
Display mode X-Y; Y-T, The input impedance 1MΩ 25pF
The maximum input voltage 40V
(Probe X1); 4OOV (Probe X1); 2000V (Probe X100)
Probe attenuation 1X, 10X,
Attenuation setting 1X, 10X, 100X
Signal acquisition system, Sampling method Real time sampling, random sampling
The storage depth approx. 4K (2K per channel)
Acquisition mode Sampling, peak detect
Vertical system, Vertical sensitivity 10mV-5V(Probe 1X) 100mV-50V(Probe 10X) (1,2.5,5 Stepping)
The vertical accuracy +/ -3%
The vertical resolution approx. 8bit, Bandwidth approx. 20MHz
Horizontal system
The real-time sampling rate approx. 200 MSa/s per channel
Horizontal scanning range approx. 10nS/ div-55/ div
Triggering system
Mode Automatic normal and single
Type The rising edge, falling edge
Automatic detection Support (50Hz-40MHz)
Mathematical operation CH1+CH2,CH1-CH2,CH2-CH1
Measurement system
Cursor measurement
Support time and voltage
Measuring method
Manual Measurement
The peak to peak value and frequency
