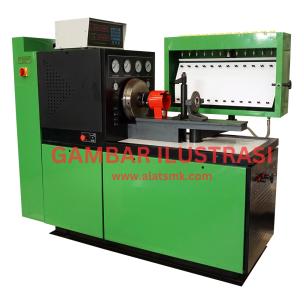

Bangku Uji Diesel Konvensional (Conventional Diesel Test Bench)

Untuk kalibrasi dan analisa pompa dan injector diesel yang sudah dikontrol oleh komputer, dan mengkalibrasi sesuai dengan standar bawaan pabrik:
Parameter teknik:
- Adjustable rotation speed range: approx. 0-4000 RPM
- Test cylinders: min. 12.
- Rotation speed presetting: min. 10 kinds.
- DC. Supply: 12/24V
- Feeding pump motor: approx. 1.1kw
- Senes of graduate glass: 45cc,150cc.
- Volume of oil tank: approx. 60L
- Main shafts Center height: approx. 125 mm
- Flywheel inertia's moment: approx. 0.8kg.M2,
- Stoke counting: 50-4000- Control temperature of fuel oil (°C): 40+2
- Feed oil pressure: low pressure approx. 0-0.4MPa, high-pressure approx. 0-4Mpa.
Internal pressure: 0-0.16MPa, 0-1.6MPa.
- rotation direction of Main shafts: Clockwise or Anticlockwise
- Output power: approx. 5.5kw
- 3 phase power supply: 380V/ 50Hz or on request.
