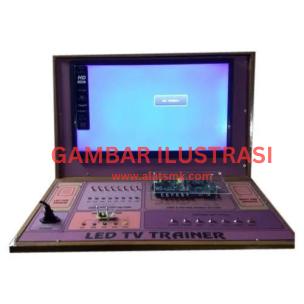

DigitalTV Trainer

Digunakan untuk pelatihan TV digital.

Television receiver with min. 19" color LCD display

Display properties :
Resolution : 640 x 480 to 1360 x 768 pixels
Horizontal frequency : 60 KHz
Vertical frequency : 75 KHz
Clock pixel frequency : 85 MHz
Standard : DVB-T (Digital), PAL, SECAM, NTSC (Analogue)
Encoding : MPEG
Connectors ; SCART, HDMI & USB
Block diagram composed of : Power supply
Tuner
Audio/Video processor
Sysco microcontroller
LCD panel driver
LCD power supply
Antenna impedance : 75 Ohm
Channels : VHF and UHF
Stereo sound system with internal speakers
On- screen Display (OSD) for television controls
Infrared remote control 24 x directly connected test points mounted on an experimental panel with mimic diagram
Power supply : 220 AC / 50Hz
Manual book.
