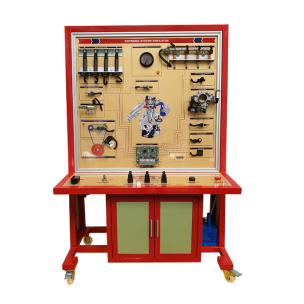

Fuel Injection Management System Simulator
Untuk mempelajari system manajemen injeksi bahan bakar
• Mobile stand on fourwheels
• Gasoline injector engine management system (MPI) with multipoint petrol injection installed in upper part of stand
• Stand allow to monitoring the following
- Fuel supply system
- Amount of injected fuel
- Fuel pressure of the fuel pump
• Construction of the fuel pump and fuel distribution system allow visually see the distribution of the fuel flow
• The ignition system and spark plugs installed in a way that allows visual monitoring of their activities
• Air flow in the intake manifold are adjustable, allowing functional demonstration of air mass flow and air temperature sensors
• Adjustable crankshaft rotation speed
• Ability altering the air/fuel mixture by the O2 sensor signal simulator
• Engine management system have a built-in voltmeter
• The stand has a closed structure, internal wiring is not visible
• Training bench equipped with a network power supply (220 /12V) and a battery (12V)
• Training stand include
- Automobile oscilloscope
- EOBD diagnostics equipment
