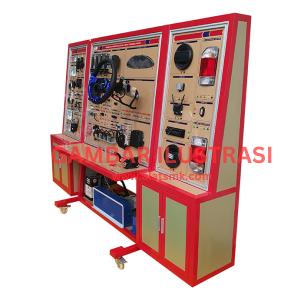

Advanced Automotive Electric Circuit Training System (Model - 1)

Mempelajari secara keselurahan kelistrikan bodi kendaraan secara detail
1) Switch board: Approx. 2500x800x1700mm
2) Attached circuit : Ignition circuit, charging circuit, circuit of indicating direction and emergency light, horn circuit, door lock circuit, head light circuit, washer circuit, wiper circuit, starting circuit, fuel circuit, sidelight circuit, antenna circuit, audio system circuit, various sensors and switch, ECU,key box, combination switch, relay box, battery, combination switch relay, fuse box and fuel tank
3) Distributor and wipers operate normally by motor and spark at plug can be checked with naked eye
4) Steering handle, surge tank, throttle body, injector and AFS light attached
5) Battery and charger
6) Charging Device: with extra Charger or 2HP motor operation
7) 1,500cc Engine Type
