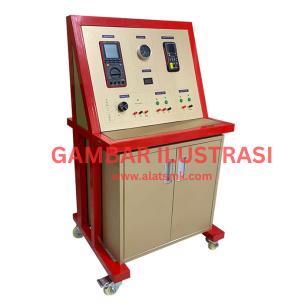

Multiple Automotive Sensor Training System
Sistem Untuk Pelatihan Beberapa Sensor Otomotif
Consists of
- Voltmeter: capable of measuring from 0 to 30 Volts
- Temperature : It has a temperature probe capable of measuring from 0 °C to 150 °C, ideal for the automotive cooling part,
- IAC valves (minimum valves)
- Injectors : select between RPM (800-1500-3000-5000)
- TPS sensor
- MAP sensor (3 or more pins)
- MAF sensor (3 or more pins)
- IAT sensor (Engine air inlet temperature)
- ECT sensor (radiator water temperature)
- Sensor CKP (Hall Effect)
- Sensor CKP (Magnetic) 2 and 3 pins
- Sensor CMP (Hall Effect) - 3 pins
- Sensor CMP (Magnetic) 2 and 3 pins
- Oscilloscope: shows AC and DC signals from 0 Hz to 200 Khz.
Selector of 3 voltage levels 1 V, 0.1 V and 10 Mv,Chooser of 3 levels of attenuation: X1 - X2 - X5
Panel kontrol dengan indikator lampu dan tombol darurat.
