DETAIL PRODUK
Electronic EGR Throttle Body & Actuator Tester
Konsentrasi Keahlian :
Deskripsi :
Alat Uji untuk mendiagnosa performa dari EGR (katup gas elektrik), dan sensor utama pada diesel commonrail.
Electronic EGR
Electronic Throttle Body Variable
Intake Manifold Actuator
Intake Air Control (IAC) Actuators - both on and off the vehicle
Supply Pump
Electric Control
EVAP Control Solenoids
Cooling Fans
HVAC Blower Motors/Blend Doors
Other actuators and motors -that can be operated by PWM or DC within the current range.
PowerSupply: 11 - 18VDC
Output Current: 0 - 40A (high side/low side drive)
Current Display: 0 - 40A (0.1A resolution)
PWM Rate: approx. 15kHz PWM
Range:0-100%duty
Over Temperature: Heat Sink >
approx. 120° F (output disabled)
Over Current: > 40A (output disabled) Continuous On Time:
approx. 2 minutes Ø 40 amps,
approx. 10 minutes Ø 20 amps,
approx. 25 minutes Ø 10 amps,
approx. 30 minutes Ø 5 amps.
Kit includes:
1 x Tester with approx. 7ft (2.1m)
cables, 2 x approx. 3ft (0.91m) 40A
Test Leads
2 x Battery Clips,2 x Alligator Clips, 2 x Female Spade Probes, 1 x Male Spade Probe
Manual Book
Electronic EGR
Electronic Throttle Body Variable
Intake Manifold Actuator
Intake Air Control (IAC) Actuators - both on and off the vehicle
Supply Pump
Electric Control
EVAP Control Solenoids
Cooling Fans
HVAC Blower Motors/Blend Doors
Other actuators and motors -that can be operated by PWM or DC within the current range.
PowerSupply: 11 - 18VDC
Output Current: 0 - 40A (high side/low side drive)
Current Display: 0 - 40A (0.1A resolution)
PWM Rate: approx. 15kHz PWM
Range:0-100%duty
Over Temperature: Heat Sink >
approx. 120° F (output disabled)
Over Current: > 40A (output disabled) Continuous On Time:
approx. 2 minutes Ø 40 amps,
approx. 10 minutes Ø 20 amps,
approx. 25 minutes Ø 10 amps,
approx. 30 minutes Ø 5 amps.
Kit includes:
1 x Tester with approx. 7ft (2.1m)
cables, 2 x approx. 3ft (0.91m) 40A
Test Leads
2 x Battery Clips,2 x Alligator Clips, 2 x Female Spade Probes, 1 x Male Spade Probe
Manual Book
Tag:
#DAK Alat SMK 2023
Anda menginginkan produk ini?
Hubungi Kami Sekarang
PRODUK LAINNYA
Disintegration Tester
Basket assembly 2 • Niacelle back and forth frequency 30−32...
Farmasi Industri
Stability Tester - for Asphalt
"Untuk menguji kekuatan campuran aspal. Automatically calcul...
Los Angeles Abrasion Tester
- Rotation Speed: 30-35 rpm - Weight: 400 Kg - Dimensions: 9...
Konstruksi Jalan Dan Jembatan
,
Konstruksi Jalan Irigasi Dan Jembatan
,
Teknik Konstruksi Dan Perumahan
,
Konstruksi Gedung dan Sanitasi

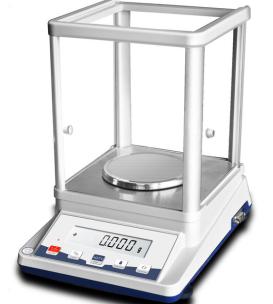

Electronic Balance
- Kapasitas: 3000g x 0.001g (untuk akurasi lebih tinggi) - P...
Konstruksi Jalan Dan Jembatan
,
Konstruksi Jalan Irigasi Dan Jembatan
,
Teknik Konstruksi Dan Perumahan
,
Konstruksi Gedung dan Sanitasi

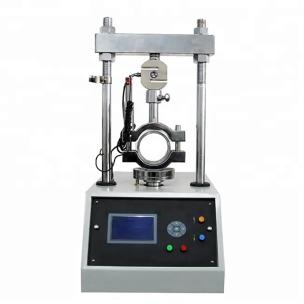

Stability Tester for Asphalt
